Wotofo Profile Squonk Mod - The 2 in 1 Mod.
I have been a massive fan of Wotofo for many years, and followers of my blog will know i have a lot of time for Wotofo products, and love a good squonk, So when the team at New Vaping agreed to send over the Wotofo Profile 200W Squonk Mod it was going to be a match made in heaven.
"To Squonk or Not to squonk that is the question!"
Introduction to the Wotofo Profile.
Wotofo Profile 200W Squonk Mod comes with a brand new set up in terms of battery power, Supporting both single and dual 18650 batteries, which in its self is'nt that new, and other manufactures have given vapors the option to run on one or two batteries, independant of each other. But in the case of the Profile this incredibly versatile piece of vaping equipment has been design to be the ideal solution for all vapers, especially those who prefer to squonk from time to time. To Squonk or not to Squonk?
That is the question. With the latest collaboration between Wotofo & MrJustRight1, you can now squonk or not squonk to get the best flavor and vaping experience through the Wotofo Profile Squonk Mod.
When it's powered by single 18650 battery, it can reach up to 80W and fulfill your most need with a 7 ml large capacity of squonk bottle.
Or if you wish to run it on dual 18650 batteries, you can replace the squonk with another 18650 battery, and the max 200W definitely covers all your vaping demands.
The Profile Squonk Mod is a true all-in-one solution for vapers who want to squonk or enjoy a regular mod vaping experience.
The 7ml squeezable squonk bottle boasts plenty of capacity for your favorite e-juice. Made using 100% food-grade silicone with a leak-proof seal design on the opening, you won’t have to worry about your e-juice running out for a long time or any accidental leaks. Of course it adopts the USB-C 2A fast charging and it only weights 135g(without battery), thus it's a perfect companion for EDC.
You have got 2 styles to choose from: Black and Gunmetal. With the designed texture and soft yet solid hand feeling.
Wotofo Profile Specifications:
- Dimensions: 93.85(L)*44.4(W)*30(THK) mm
- Net Weight: 135g (without battery)
- Squonk Bottle Capacity: 7ml
- Maximum Output Voltage: 4.2V
- Standby Current: 300uA
- Charging Current: DC 5V/2A
Main Features:
- Output Power:
- ○ 5-80W in single battery mode
- ○ 5-200W in dual battery mode
- Charging Port: Type-C
- Display: 0.96’’ TFT Screen
- Main Material: Zinc Alloy + PC
- Connection: 510 connection
- Battery Type: single / dual 18650 battery (not included)
- Pass-through Charging: Supported
Package Contents:
- Profile Squonk Mod x1
- User Manual x1
- Type-C Charging Cable x1
- Squonk Bottle x1 (pre-installed)
Design and Build Quality
The team at New Vaping stock both the black and gun metal versions at their online Vape Shop, and where kind enough to send out the Gun metal version.
It was nicely presented with the normal bright Wotofo branding. they will definitely stand out on the shelf.
Considering that the device doubles up as a Squonker, it is no larger than the average dual battery device, measuring is at 94 mm tall and 44mm wide. It is designed to fit nicely in the hand, and defiantly wont weigh you down coming in at 135g unloaded.
The top of the device, I'm pleased to see that they have centralised the 510 connection, featuring a gold plated hollow squonk pin, which remains in place, even when not Squonking.
The front of the device is nicely uncluttered, centered around the 0.96TFT colour display, that displays everything you would expect on a mod like this.
The screen is top and tailed by the fire button above and the adjustment buttons laid out below the screen.
Battery Door
On the rear of the device is a moulded plastic battery door, which is held in place by two strong magnets. The door does have a very large amount of branding on, which I am not a massive fan of, and never sure why companies feel the need to add so many logos, Due to the devices Squonking capabilities it also has a wide thumb slot for activating your squonk bottle.

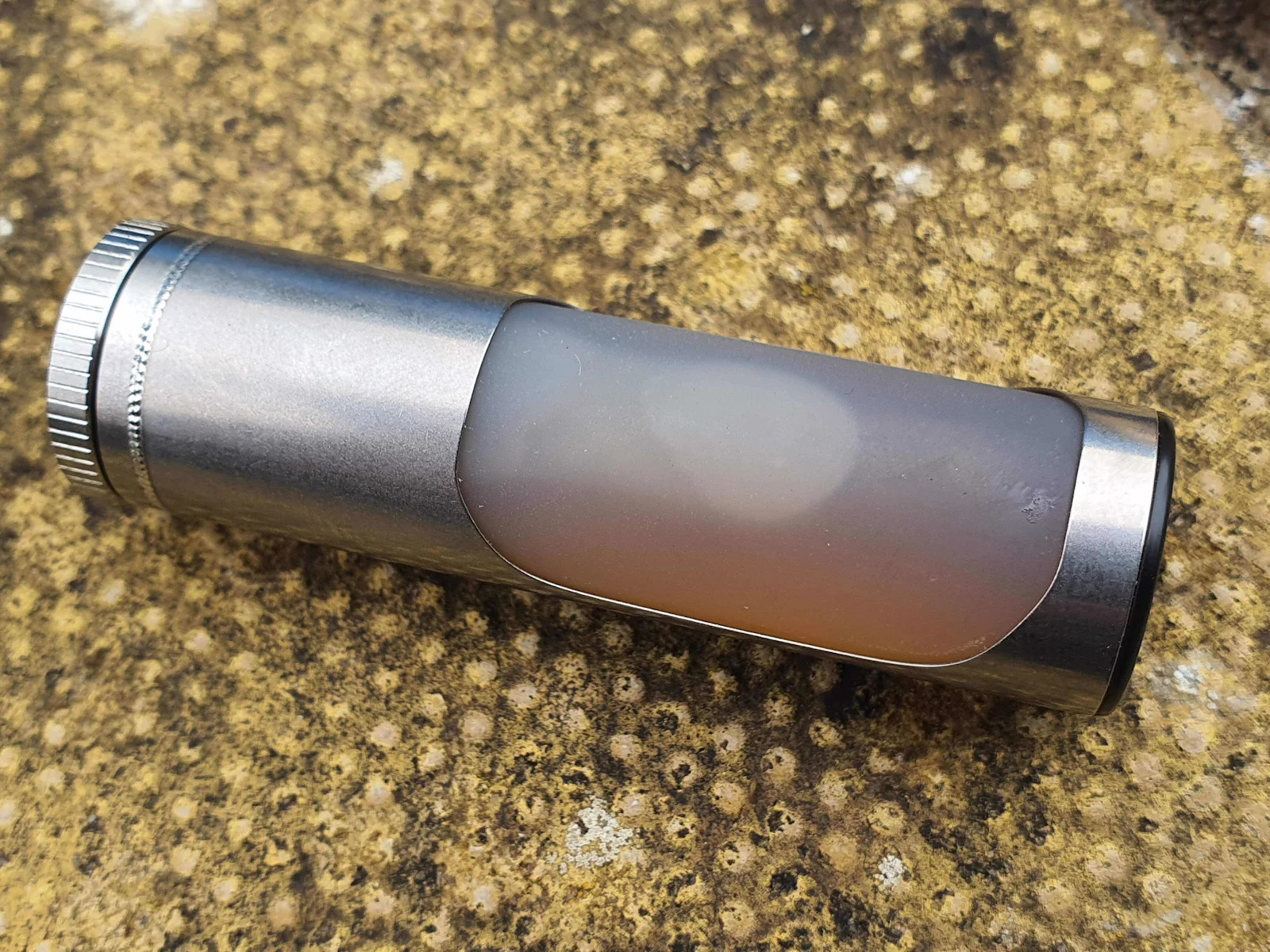

One you remove the door you will find the cleverly designed Squonk bottle, 7ml in capacity, and made out of soft silicone. The bottle sits in side an aluminium cage, that features a screw on cap. The purpose of the cage design becomes clear, when you see how the bottle is installed, and how it fits directly into the battery compartment. With the positive pin doubling up as a squonk pin. very clever design.
With the bottle removed, the Profile has a very neat, well laid out battery compartment. with a ribbon installed to assist in removing the battery.
It is a bit strange that you have to remove the squonk bottle ever time you want to change the battery, they could have done with adding a 2nd pull tape.
With the 'B' positive post acting as the hollow Squonk pin, I'm not sure if you will get juice held in the pin running back onto the battery, when you swap it over to 'Dual' battery mode.
Device Bottom
The bottom of the device has even more branding, again not really needed.
Wotofo Profile Squonk Mod Quick Start Guide
To use in Squonking mode.
- Remove the plastic battery door and take out the 7ml bottle, unscrew the cap and fill with E-liquid.
- Replace the cap and replace into your mod along with a freshly charged 18650 battery
- Prepare your BF RDA as you would normally, and then screw on to the Profile Squonk mod.
- Lightly squeeze the bottle until you see liquid dampening your cotton.
As a normal dual battery vaping device
Remove the bottle, making sure you clean any remaining E-liquid from all contacts in particular the squonk pin! Insert 2 freshly charged 18650’s add your tank and away you are ready to start vaping.
Control Functions
- Click the fire button x5 fast to turn the device on and off.
- Using the up and down buttons will alter the wattage.
- Click the fire button x3 will completely lock and unlock the mod.
- Holding down both adjustment buttons will lock and unlock the wattage.
- Fire and up buttons together, will allow you to change to any of the 6 theme colours – red, yellow, blue white, purple and green.
- Fire and down button together will clear the puff counter!
The mod has a nearly instant 0.001 fire thanks to the NexChip, and includes protections features built into the chipset like Atomizer detection, Overheat and PCB safety shut off, for your vaping peace of mind.
Conclusions.
I have enjoyed using the profile as both a Squonker, and normal dual 18650 Mod. The Squonker preformed really well, and I didn’t have any of the leaking issues that I thought I may have, with this set up. I did find the layout of the button, and the Squonk bottle cut out a bit awkward, and it didn’t feel as natural as other Squonker. I think if you are new to squonking, and didn’t want to commit to a specific Squonk mod, then the profile might be a good choice. But if you are looking for a Squonk mod, then I think I would go for a stand-alone Squonk set up, such as the Dovpo Topside.
